ADRF5019BCPZN IC RF SWITCH SPDT 13GHZ 16LFCSP Analog Devices Inc.

Product Categories
Sanhuang electronics (Hong Kong) Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ADRF5019BCPZN IC RF SWITCH SPDT 13GHZ 16LFCSP Analog Devices Inc.

Brand Name : Analog Devices Inc.

Model Number : ADRF5019BCPZN

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

RF Type : VSAT

Topology : Absorptive

Circuit : SPDT

Frequency Range : 100MHz ~ 13GHz

Isolation : 25dB

Insertion Loss : 1.5dB

Test Frequency : 13GHz

P1dB : 39dBm

IIP3 : 60dBm

Features : -

Impedance : 50Ohm

Voltage - Supply : 3V ~ 3.6V

Operating Temperature : -40°C ~ 105°C

Mounting Type : Surface Mount

Package / Case : 16-VFQFN Exposed Pad, CSP

Supplier Device Package : 16-LFCSP (3x3)

Contact Now

Product Details

GENERAL DESCRIPTION

The ADRF6510 is a matched pair of fully differential low noise and low distortion programmable filters and variable gain amplifiers (VGAs). Each channel is capable of rejecting large out-ofband interferers while reliably boosting the wanted signal, thus reducing the bandwidth and resolution requirements on the analog-to-digital converters (ADCs). The excellent matching between channels and their high spurious-free dynamic range over all gain and bandwidth settings make the ADRF6510 ideal for quadrature-based (IQ) communication systems with dense constellations, multiple carriers, and nearby interferers.

FEATURES

Matched pair of programmable filters and VGAs
Continuous gain control range: −5 dB to +45 dB
6-pole filter
1 MHz to 30 MHz in 1 MHz steps, 0.5 dB corner frequency
SPI programmable
6 dB front-end gain step
IMD3: >55 dBc for 1.5 V p-p composite output
HD2, HD3: >60 dBc for 1.5 V p-p output
Differential input and output
Adjustable output common-mode voltage
Optional dc output offset correction
Power-down feature
Single 5 V supply operation

APPLICATIONS

Baseband I/Q receivers
Diversity receivers
ADC drivers

Specifications

AttributeAttribute Value
ManufacturerAnalog Devices
Product CategoryRF Switches
PackagingStrip
Package-Case16-LFCSP-WQ (3x3)
Impedance50Ohm
Operating-Temperature-40°C ~ 105°C
Frequency-Range100MHz ~ 13GHz
Voltage-Supply3V ~ 3.6V
CircuitSPDT
TopologyAbsorptive
Insertion-Loss1.5dB
Test-Frequency13GHz
P1dB-Compression-Point39dBm
RF-TypeVSAT
Isolation25dB
IIP360dBm















Product Tags:

IC RF



RF Integrated Circuit Module



RF IC Chip Module


Quality ADRF5019BCPZN IC RF SWITCH SPDT 13GHZ 16LFCSP Analog Devices Inc. wholesale

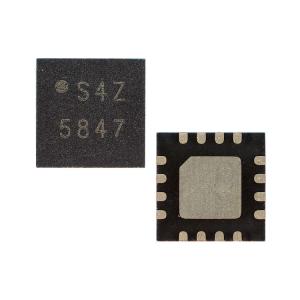

ADRF5019BCPZN IC RF SWITCH SPDT 13GHZ 16LFCSP Analog Devices Inc. Images
